Blue Sea Systems Boat Fuse Block 5031 | 12 Slot 6 1/2 x 3 3/8 Inch Clearance

Boat part number 1105039 is a new fuse block from Blue Sea Systems, part number 5031 .

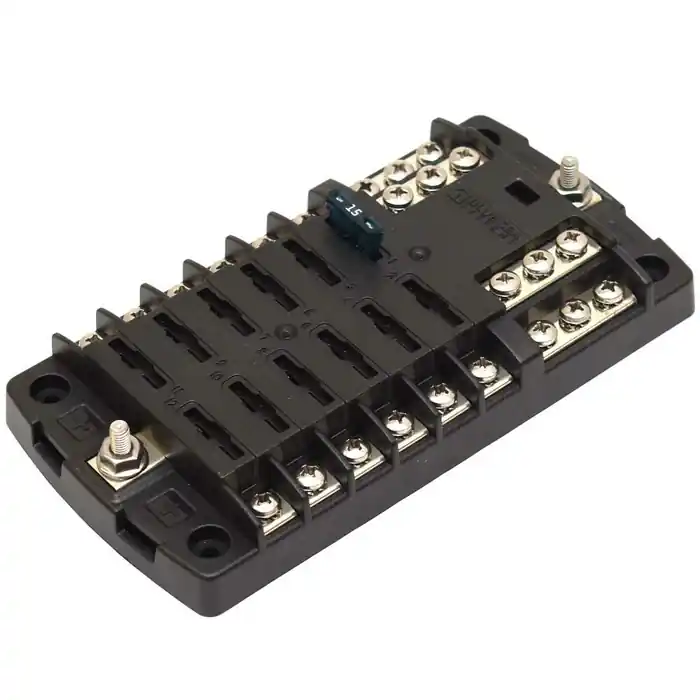

This fuse block is constructed out of matte black plastic and has (12) fuse holders, (1) positive stud terminal, and (1) negative stud terminal. It measures approximately 6 1/2″ L x 3 3/8″ W x 1″ H overall and mounts via (4) 1/8″ Dia. countersunk mounting holes. Includes (1) 15A fuse.

Manufacturer specifications:

• Positive distribution bus with #10-32 stud
• Can be used for 24-hour circuits
• Tin-plated copper buses and fuse clips
• Accepts ring or snap fork type terminals
• Accepts ATO® and ATC® fast acting blade fuses
• Circuits: 12
• Maximum Amperage: 100A per block / 30A per circuit
• Maximum Voltage: 32V DC

Specifications:

• Part Manufacturer: Blue Sea Systems
• Part Number: 5031
• UPC: 632085050313
• Material: Plastic
• Color: Black
• Finish: Matte
• Overall Dimensions: 6 1/2″ L x 3 3/8″ W x 1″ H
• Mounts: (4) 1/8″ Dia. Countersunk Mounting Holes
