Boat part number 8701085 is a new blank AC control center breaker switch panel for Carver Yachts, part number 5765718 . May be used on other boats.

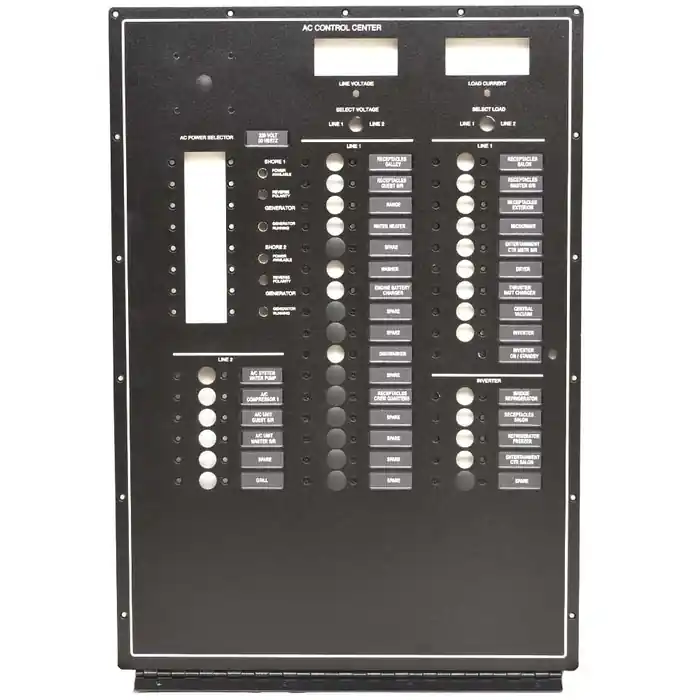

This breaker panel is constructed from black textured aluminum with white accents. It measures approximately 16 1/2″ W x 23 3/4″ H overall (24 1/2″ H with hinge). This panel features (1) piano hinge with an approximately 1/4″ Dia. pin. The hinge measures approximately 15 1/4″ W x 1″ H. This panel has (4) 6-32 and (1) 10-32 threaded mounting bolts, and (19) 3/16″ Dia. mounting holes (hardware not included).

This panel features the following labels:

• Line Voltage
• Load Current
• Select Voltage (Line 1 / Line 2)
• Select Load (Line 1 / Line 2)
• AC Power Selection (220 Volt / 50 Hertz)
• Power Available
• Reverse Polarity
• Generator Running
• Power Available
• Reverse Polarity
• Generator Running
• Receptacles Galley
• Receptacles Guest S/R
• Range
• Water Heater
• Washer
• Engine Battery Charger
• Dishwasher Spare
• Receptacles Crew Quarters
• A/C System Water Pump
• A/C Compressor 1
• A/C Unit Guest S/R
• A/C Unit Master SR
• Grill
• Receptacles Salon
• Receptacles Master S/R
• Receptacles Exterior
• Microwave
• Entertainment CTR MSTR S/R
• Dryer
• Thruster Batt Charger
• Central Vacuum
• Inverter
• Inverter On/Standby
• Bridge Refrigerator
• Receptacles Salon
• Refrigerator Freezer
• Entertainment CTR Salon

This panel features the following cutouts:

• (2) 2 7/8″ W x 1 1/4″ H
• (77) 3/16″ Dia.
• (6) 5/16″ Dia.
• (28) 5/8″ Dia.

Tag reads: AC DISTRIB 220V

Specifications:

• Boat Manufacturer: Carver Yachts
• Part Number: 5765718
• Part Manufacturer: Unavailable
• Material: Aluminum
• Color: Black
• Finish: Textured
• Overall Dimensions: 16 1/2″ W x 23 3/4″ H (24 1/2″ H with hinge)
• Mounts: (4) 6-32 and (1) 10-32 threaded mounting bolts / (19) 3/16″ Dia. mounting holes
