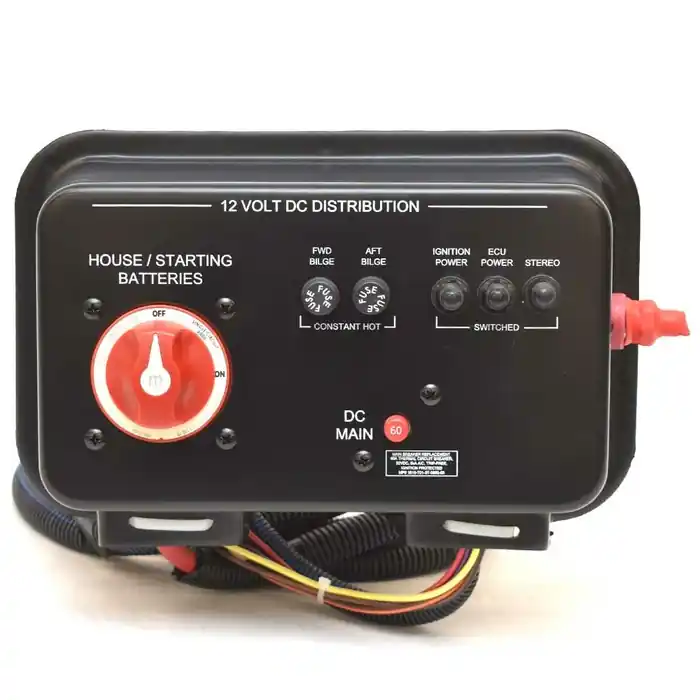

Exclusive MasterCraft Boat Battery Distribution Panel 502330A | NXT 12VDC

Boat part number 8402728 is a new, OEM single battery distribution panel for a 2020 NXT model MasterCraft Boat, part number 502330A . Manufactured by BH Electronics, part number 241-01274-V .

This battery control panel is constructed out of black plastic, and measures approximately 11″ L x 7″ H x 4″ D overall. Uses (2) 3/8″ ID ring terminal, (1) 2-pin female Deutsch, (1) 4-pin female Deutsch, and (1) 1-pin DTHD connections. Per manufacturer rated for 12VDC.

This breaker panel features the following:

• (1) Fuse: FWD Bilge
• (1) Fuse: Aft Bilge
• (1) Booted Breaker: Ignition
• (1) Booted Breaker: ECU Power
• (1) Booted Breaker: Stereo
• (1) 60A Breaker: DC Main
• (1) Blue Sea Systems Battery Selector Switch | “House/Starting Batteries”

2-Position battery switch rated at 300A Continuous, 500A 5Min, 900A 30Sec, at 48V DC Max.

Specifications:

• Boat Manufacturer: MasterCraft Boats
• Model: NXT
• Year: 2020
• Part Number: 502330A
• Part Manufacturer: BH Electronics
• Part Number: 241-01274-V
• Material: Plastic
• Color: Black
• Electrical: 12 V DC
• Overall Dimensions: 11″ L x 7″ H x 4″ D
• Connections: (2) 3/8″ ID Ring Terminal | (1) 2-Pin Female Deutsch | (1) 4-Pin Female Deutsch | (1) 1-Pin DTHD
