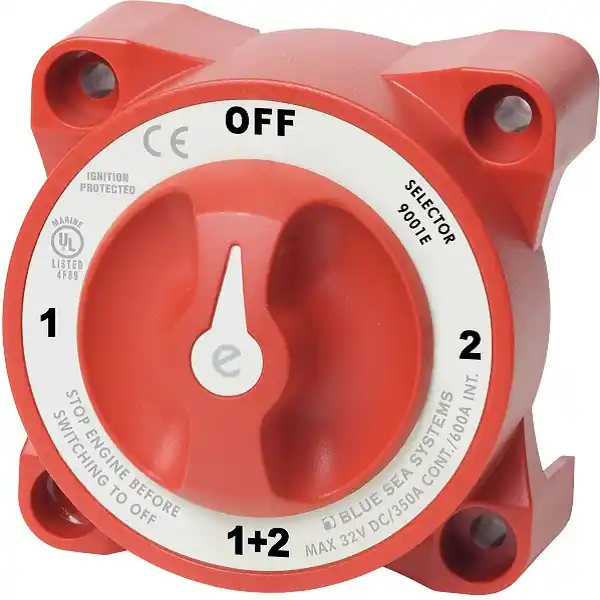

Fast Shipping Blue Sea e-Series Battery Switch Selector 4 Position

Blue Sea Systems e-Series Battery Switch Selector- 4 Position

Features:

• Make-before-break contact design allows switching between battery banks without power interruption
• Ignition protected – safe for installation aboard gasoline powered boats
• Case design allows surface or rear panel mounting
• Meets American Boat and Yacht Council (ABYC) requirements for battery switches
• Cranking Rating: 10 sec. 2,000 Amps
• Intermittent Rating: 5 min. 600 Amps
• Continuous Rating 350 Amps
• Maximum Voltage Rating 32 Volts DC
• Terminal Stud Size 3/8″-16 (M10)
• Terminal Stud Torque 140 in-lb (15.82 Nm) max.
• Mounting Holes Accept 1/4″ (M6) Screw
• Cable Size to Meet Ratings 4/0 AWG (95mm²)
• Cable Clearance For 4/0 AWG Cables 1.10″ (27.9mm)
• Weight 1.15lb (0.52)
• UL Listed – UL 1107 electric power switches
• Meets American Boat and Yacht Council (ABYC) requirements
• Meets UL 1500 and SAE J1171 external ignition protection requirements
• 4 Position with battery combine

 Click to Download Blue Sea’s Battery Management Wiring Schematics
