Four Winns Boat Battery Switch Panel 025-3835 | 310 Horizon Aluminum Deal

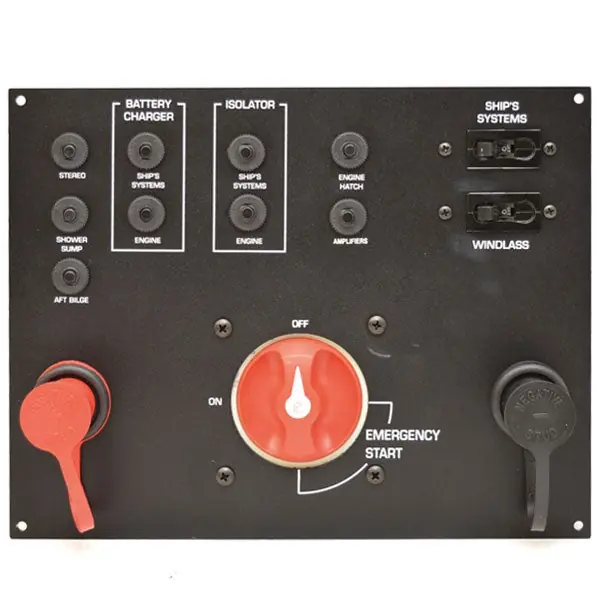

Boat part number 8202649 is a new battery switch panel for a Four Winns 310 Horizon Boat, part number 025-3835 . Manufactured by GCS, part number 0132380 .

Constructed out of black powdered coated aluminum with a textured finish. Measuring approximately 11 1/2″ W x 9″ H overall, and has (4) approximately 1/8″ Dia. mounting holes around perimeter spaced 11″ apart center on center.

This battery switch panel features the following pre-marked items:

• Stereo | Push-Button Reset Breakers
• Shower Sump | Push-Button Reset Breakers
• AFT Bilge | Push-Button Reset Breakers
• Battery Charger | Ship’s Systems / Engine (Push-Button Reset Breakers)
• Isolator | Ship’s Systems / Engine (Push-Button Reset Breakers)
• Engine Hatch | Push-Button Reset Breakers
• Amplifiers | Push-Button Reset Breakers
• Ship’s Systems | On/Off Breaker Switch
• Windlass | On/Off Breaker Switch

Host the following terminals:

• (1) Positive Battery Terminal Stud
• (1) Negative Battery Terminal Stud
• (1) Emergency Start On/Off Selector Turn Switch

Connects with the following:

• (1) 10 Pin Male Connector

Note: Contains minor scuffs due to storage and handling. See photos.

Specifications:

• Boat Manufacturer: Four Winns
• Model: 310 Horizon
• Part Number: 025-3835
• Part Manufacturer: GCS
• Part Number: 0132380
• Material: Aluminum
• Color: Black
• Finish: Textured
• Overall Dimensions: 11 1/2″ W x 9″ H
• Mounts: (4) 1/8″ Dia. Holes
• Connection: (1) 10 Pin Male Connector
