Larson Boat Windshield Hardware 7136-0010 | w/ Support Braces (Kit) Price Drop

Boat part number 1109616 is a new windshield hardware kit for 2015, 190 LXH Larson Boats, part number 7136-0010 . Manufactured by Taylor Made, part number 589004013205 . May be used on other boats.

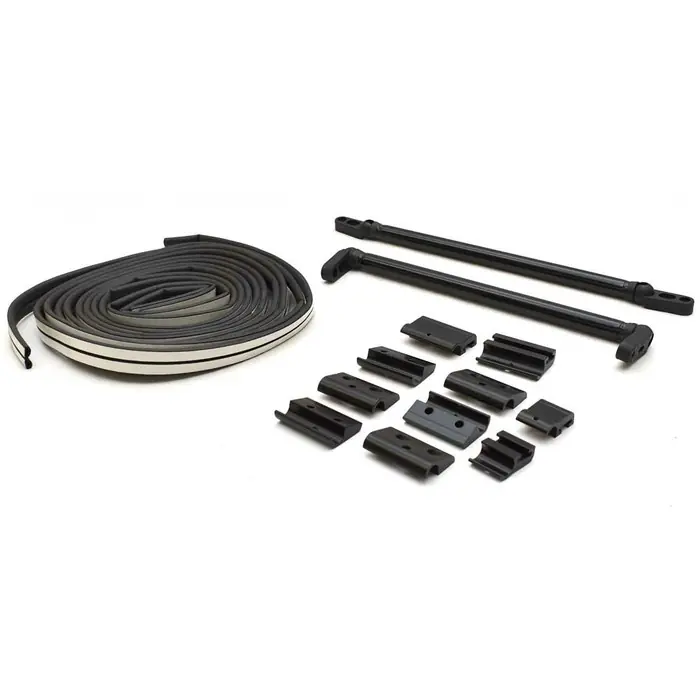

Kit includes the following:

• (2) Windshield Support Braces
• (2) Foam Gasket Molding w/ Adhesive Backing | 7/8″ W x 1/4″ H x 103″ L
• Hardware

The windshield braces are constructed out of black aluminum with plastic fittings. Each bracket measures approximately 14 3/8″ in overall length (11 5/8″ ball-to-ball). There are (2) 3/16″ Dia. and (2) 3/16″ W x 3/8″ L slotted mounting holes per bracket.

Kit sold as shown in photos.

Specifications:

• Boat Manufacturer: Larson
• Model: 190 LXH
• Year: 2015
• Part Number: 7136-0010
• Part Manufacturer: Taylor Made
• Part Number: 589004013205
• Material: Aluminum / Plastic / Foam Rubber
• Color: Black
• Support Brace Length: 14 3/8″ (11 5/8″ ball-to-ball)
• Support Brace Mounts: (2) 3/16″ Dia. and (2) 3/16″ W x 3/8″ L slotted mounting holes (per bracket)
• Gasket Length: 103″
• Gasket Dimensions: 7/8″ W x 1/4″ H
• Gasket Mounts: Adhesive Backing
