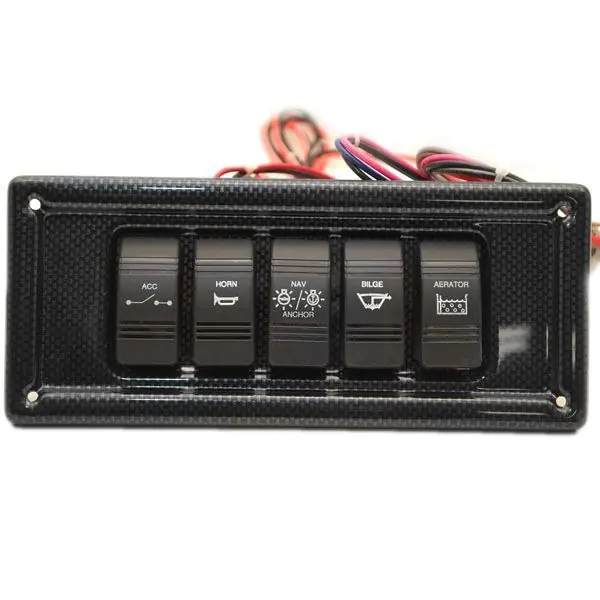

Limited Edition DuraCraft Boat Switch Panel 221-04513-P | 8 3/4 x 3 7/8 Inch Black

Boat part number 1016836 is a new switch panel from Duracraft, part number 221-04513-P . May be used on other boats.

The panel is constructed out of plastic and measures approximately 8 3/4″ W x 3 7/8″ H overall. With (4) countersunk mounting holes.

The panel features the following Carling 20 amp, 12 volt switches.

• (1) On/off Acc; spade connectors
• (1) On/Off Momentary horn; 3 spade connectors
• (1) On/Off/On Nav/Anchor; 4 spade connectors
• (1) On/Off Bilge; 3 spade connectors
• (1) On/Off aerator; 3 spade connectors

The panel features the following connections.

• (1) 9 pin male (7 active)
• (1) 9 pin female (7 active)
• (2) 2 pin female plugs
• (1) 2 pin female

Specifications:

• Boat Manufacturer: DuraCraft
• Part Number: 221-04513-P
• Material: Plastic
• Color: Black
• Overall Dimensions: 8 3/4″ W x 3 7/8″ H.
• Mounts: (4) countersunk mounting holes.
