Lund Boat Breaker Panel 2402052 | 3 3/4 x 6 Inch w/ Fuse Block New Arrival

Boat part number 8305006 is a new breaker panel with fuse block for Lund boats, part number 2402052.

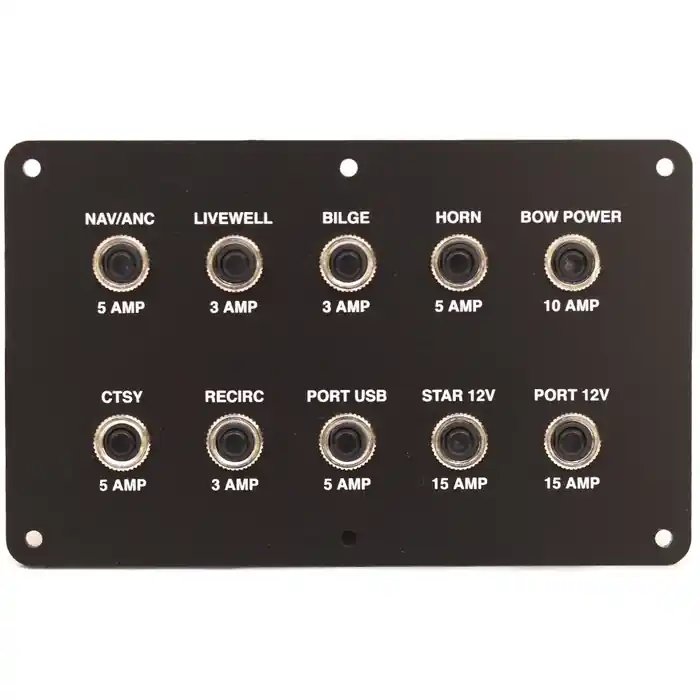

This panel is constructed out of black plastic and measures approximately 3 3/4″ H x 6″ W overall with (6) 3/16″ Dia. mounting holes around the perimeter. Connects to power with (1) 15-pin female, (2) female spades, and (2) 1-pin male connectors.

The panel has (10) pre-installed push-to-reset breakers with the following labels:

• NAV/ANC – 5 AMP
• LIVEWELL – 3 AMP
• BILGE – 3 AMP
• HORN – 5 AMP
• BOW POWER – 10 AMP
• CTSY – 5 AMP
• RECIRC – 3 AMP
• PORT USB -5 AMP
• STAR 12V – 15 AMP
• PORT 12V – 15 AMP

The fuse block has (6) slots and measures aproximately 3 7/8″ H x 3 1/4″ W overall.

Specifications:

• Boat Manufacturer: Lund
• Part Number: 2402052
• Part Manufacturer: Unavailable
• Material: Plastic
• Color: Black
• Finish: Matte
• Overall Dimensions: 3 3/4″ H x 6″ W Panel | 3 7/8″ H x 3 1/4″ W Block
• Mounts: (6) 3/16″ Dia. Holes
• Connections: (1) 15-pin female / (2) female spades / (2) 1-pin male
