No Minimum Order Trophy Boat Circuit Breaker Panel | Breakers 12VDC 7 x 5 Inch Black
Home / Boat Hardware, Interior & Accessories / No Minimum Order Trophy Boat Circuit Breaker Panel | Breakers 12VDC 7 x 5 Inch Black

No Minimum Order Trophy Boat Circuit Breaker Panel | Breakers 12VDC 7 x 5 Inch Black

Original price was: $59.95.Current price is: $29.98.

For orders under $59.00, a shipping fee of $8.99 applies.

SKU: SK0013920-US20251216-084134 Category:
Share

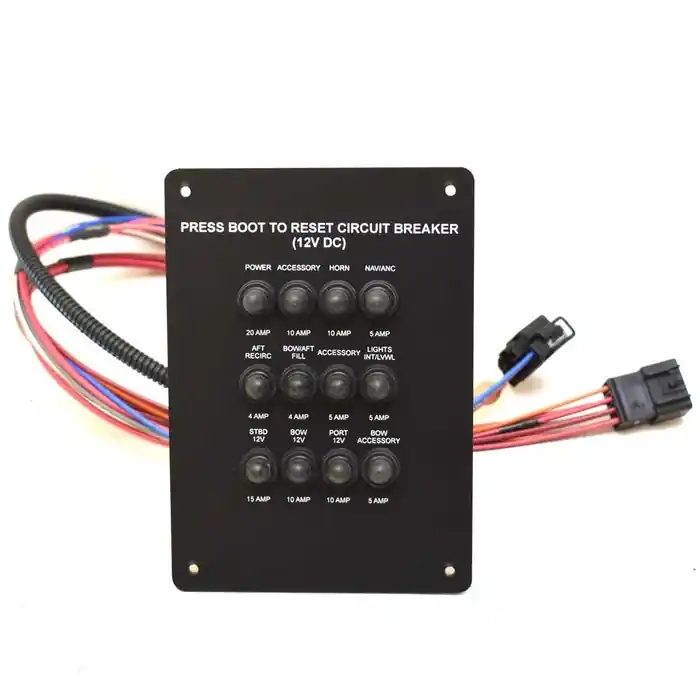

Boat part number 1077923 is a new OEM 12 VDC circuit breaker panel from Trophy Boats, part numbers 1967627 / 1967628 . Manufactured by Brunswick , part number F3582095123 .

This breaker panel is constructed out black marine grade plastic with a matte finish. It measures approximately 5″ W x 7″ H x 3 1/2″ D overall. There are (4) approximately 1/8″ diameter mounting holes spaced 4 1/4″ apart center on center.

Tag reads: PANEL, BRKR G18LT / G18LF-13

Features the following press-to-reset breakers w/Boots:

  • (1) 20A Power | Push-Button Breaker
  • (1) 10A Accessory | Push-Button Breaker
  • (1) 10A Horn | Push-Button Breaker
  • (1) 5A NAV/ANC | Push-Button Breaker
  • (1) 4A AFT RECIRC | Push-Button Breaker
  • (1) 4A BOW/AFT Fill | Push-Button Breaker
  • (1) 5A Accessory | Push-Button Breaker
  • (1) 15A STBD 12V | Push-Button Breaker
  • (1) 10A BOW 12V | Push-Button Breaker
  • (1) 10A PORT 12V | Push-Button Breaker
  • (1) 5A BOW Accessory | Push-Button Breaker

Connections:

  • (1) O-Ring terminal | 1/4″ Dia. Lug Nut Connector
  • (1) 6-pIn Female | Only 4-Pins Active
  • (1) 6-Pin Spade Male | Only 5-Pins Active

Specifications:

  • Boat Manufacturer: Trophy
  • Part Numbers: 1967627 / 1967628
  • Part Manufacturer: Brunswick
  • Part Number: F3582095123
  • Material: Plastic
  • Color: Black
  • Finish: Matte
  • Overall Dimensions: 5″ W x 7″ H x 3 1/2″ D
  • Mounts: (4) 1/8″ Dia. mounting holes spaced 4 1/4″ apart center on center
  • Connections: (1) O-Ring terminal / (1) 6-pIn Female / (1) 6-Pin Spade Male
