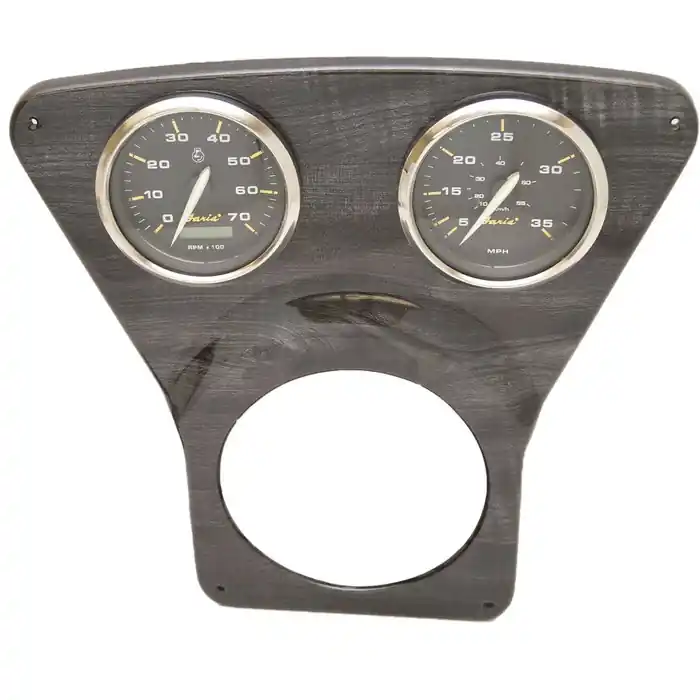

Original Godfrey Boat Gauge Panel 266143 | 12 1/2 x 12 1/4 Inch Greywood

Boat part number 1071794 is a new OEM gauge panel for Godfrey Pontoons, part number 266143 . Manufacturered by Jet Technologies, part number 8906-0366 .

Constructed out of marine grade plastic in a greywood color with a glossy finish. Measures approximately 12 1/2″ L x 12 1/4″ H overall. Hosts an approximate 5 3/8″ Dia. cutout. Has (4) 1/8″ mounting holes around the perimeter.

This panel hosts (2) Kronos Black Series gauges from faria. These gauges feature silver bezels, domed lens, black face, white lettering, numerals, accents, needle, and gold accents. Measuring 3 3/4″ dia. across the face including bezel x 4 1/4″ D overall. Both requires an approximate 3 1/4″ Dia. cutout.

The pre-installed gauges are as follows:

• 35 MPH Speedometer Gauge | SEK633A | Has pitot connection
• 7000 RPM Tachometer Gauge w/ Hour Meter | THC618B | Has (1) 4-Pin male deutsch and (1) 6-Pin female deutsch connectors. Set up for 4/6/8 Cylinders or 4/6/8/10/12 Outboard Poles.

Specifications:

• Boat Manufacturer: Godfrey Pontoons
• Part Number: 266143
• Part Manufacturer: Jet Technologies
• Part Number: 8906-0366
• Materials: Plastic
• Color: Greywood
• Overall Dimensions: 12 1/2″ L x 12 1/4″ H
• Mounts: (4) 1/8″ mounting holes
• Tachometer set up for 4/6/8 Cylinders or 4/6/8/10/12 Outboard Poles
