Pacer Marine Boat Switch Panel 574430-02-005 | 3 7/8 x 2 3/4 Inch Black Reduced Price

Boat part number 1076558 is a new switch panel from Pacer Marine, part number 574430-02-005 .

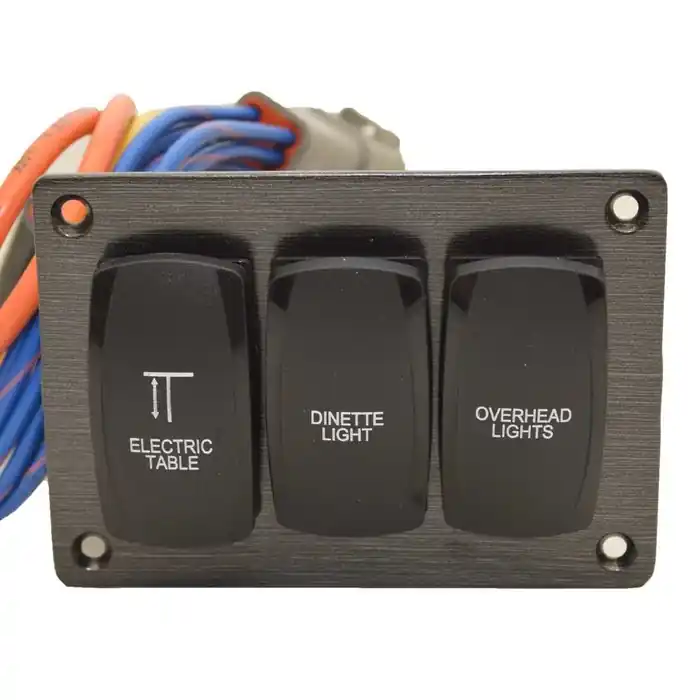

Constructed out of marine grade plastic with a brushed finish, this switch panel measures approximately 3 7/8″ L x 2 3/4″ H x 4″ D overall. Hosts (4) 3/16″ Dia. mounting holes set apart 3 3/8″ x 2 1/4″ center to center. The installed wiring harness features (2) single-pin female, (2) single pin male, and (1) 6-pin Deutsch connections.

This panel features the following rocker switches:

• Momentary On/Off “Electric Table”
• On/Off “Dinette Light”
• On/Off “Overhead Lights”

Specifications:

• Part Manufacturer: Pacer Marine Engineering
• Part Number: 574430-02-005
• Material: Marine Grade Plastic
• Color: Black
• Finish: Brushed
• Overall Dimensions: 3 7/8″ L x 2 3/4″ H x 4″ D
• Mounts: (4) 3/16″ Dia. Mounting Holes Set Apart 3 3/8″ x 2 2/4″ Center to Center
• Connections: (2) Single-Pin Female | (2) Single Pin Male | (1) 6-Pin Deutsch
