Place Order Bayliner Boat Switch Panel 1850908 | 11 7/8 Inch Woodgrain Plastic

Boat part number 1016607 is a new blank switch panel from Bayliner Boats, part number 1850908 . May be used on other boats.

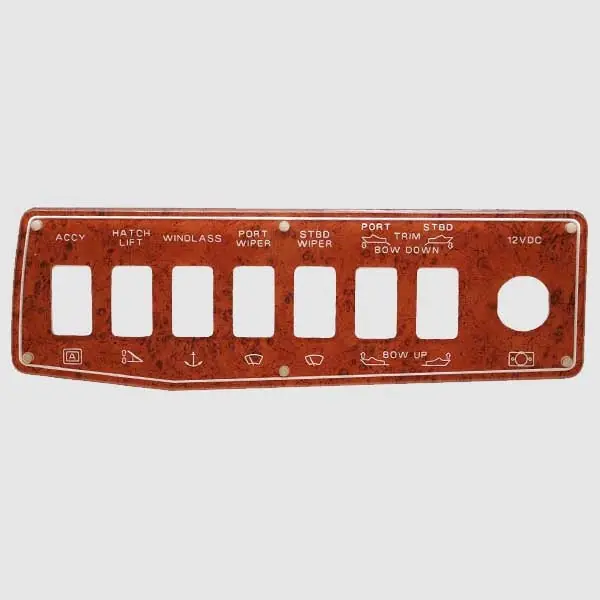

This blank switch panel is constructed out of woodgrain plastic, and measures approximately 11 3/4″ L (on top) x 11 7/8″ L (on bottom) x 3 3/4″ H (tapering to 3 1/2″ H) overall. Mounts with (6) 3/16″ OD mounting holes set around the perimeter.

This panel features (7) 13/16″ W x 1 7/16″ H cutouts for Accy, Hatch Lift, Windlass, Port Wiper, STBD Wiper, Port / STBD Trim and (1) 1″ OD 12VDC cutout.

Specifications:

• Boat Manufacturer: Bayliner Boats
• Model/Year: Unavailable
• Part Number: 1850908
• Material: Marine Grade Plastic
• Color: Woodgrain
• Overall Dimensions: 11 3/4″ L (On Top) x 11 7/8″ L (On Bottom) x 3 3/4″ H (Tapering To 3 1/2″ H)
• Mounts: (6) 3/16″ OD Mounting Holes Set Around The Perimeter
