Ranger Boat Switch Panel Blank 9859203 | 10 7/8 x 4 5/8 Inch Black Clearance

Boat part number 1086512 is a new OEM illuminated blank switch panel from from Ranger Boats, part number 9859203 .

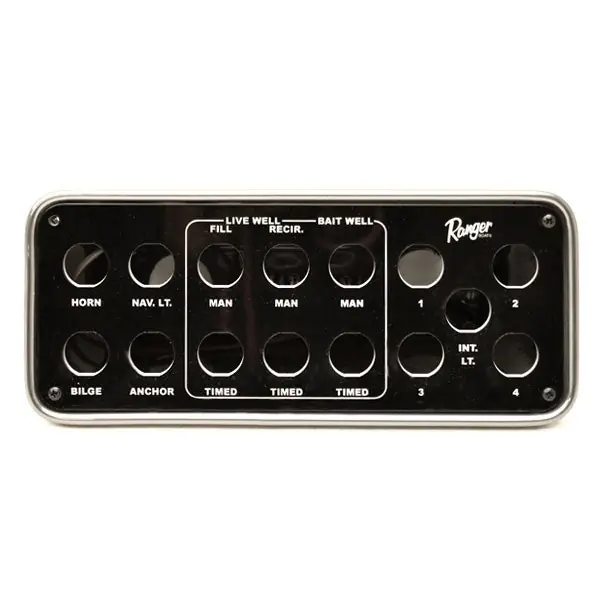

This OEM blank switch panel is constructed out of black marine grade plastic with a silver colored trim. Measures approximately 10 7/8″ L x 4 5/8″ H x 4 1/2″ D overall. Requires an approximate cutout of 4″ D x 10 5/8. Hosts (4) 1/8″ Dia. mounting holes, spaced 3 1/8″ apart center on center.

Has (15) cutouts in the face that measure approximately 7/8″ Dia. Hosts (2) 1 1/2″ Dia. in the back cover. Illuminates with a set of white LED lights in the rear of the panel, illuminating through the white lettering on the face of the panel. Light connection has (2) wire leads.

Features the following labeled cutouts:

• Horn
• Bilge
• Nav. Lt.
• Anchor
• Livewell Fill / Man
• (2) Livewell Timed
• Livewell Recir. / Man
• Baitwell Man
• Baitwell Timed
• 1
• 2
• 3
• 4
• Int. Lt.

Specifications:

• Boat Manufacturer: Ranger Boats
• Year/Model: Unavailable
• Part Number: 9859203
• Material: Marine Grade Plastic
• Colors: Black | Silver
• Finish: Matte
• Overall Dimensions: 10 7/8″ L x 4 5/8″ H x 4 1/2″ D
• Cutouts: 4″ D x 10 5/8 | (15) 7/8″ Dia. | (2) 1 /2″ Dia.
• Mounts: (4) 1/8″ Dia. Holes Spaced 3 1/8″ Apart Center On Center
• Connections: (2) Wire Leads
