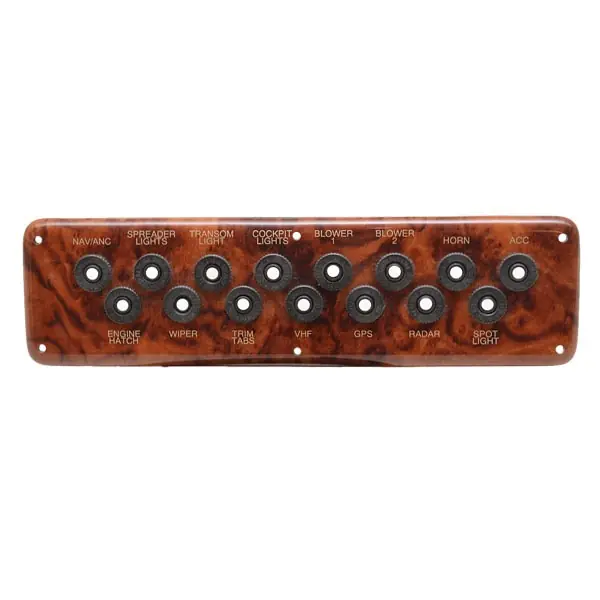

Rinker 310 Woodgrain 11 x 3 Inc Plastic Boat Push Button Breaker Panel 45804 High Quality

GLS Stock Number 1062423 is a new, out of the box, breaker panel for a 310 Rinker Boats, part number 45804 .

This Rinker panel is constructed of marine grade plastic with a medium wood-grain finish and gold colored font. Measures approximately 11″ long by 3″ high. Mounts (6) 1/8″ diameter screws (3 at top and 3 at bottom) spaced approximately 5 1/8″ apart center on center across and 2 1/8″ apart center on center from top to bottom. Has a (1) 5 pin male and (1) 11 pin male connection.

Features the following pre-labeled on panel push button breakers:

• (1) Nav/ANC
• (1) Spreader Lights
• (1) Transom Lights
• (1) Cockpit Lights
• (1) Blower 1
• (1) Blower 2
• (1) Horn
• (1) Acc
• (1) Engine Hatch
• (1) Wiper
• (1) Trim Tabs
• (1) VHF
• (1) GPS
• (1) Radar
• (1) Spot Light

Specifications:

• Boat Manufacturer: Rinker
• Model: 310
• Part Number: 45804
• Material: Marine Grade Plastic
• Color: Medium Wood-grain
• Overall Dimensions: 11″ W x 5″ D (including some wire harness) x 3″ H
• Mounts: (6) 1/8″ Dia. screws (3 at top and 3 at bottom). Spaced 5 1/8″ apart center on center across and 2 1/8″ apart center on center from top to bottom
