Rinker Boat Ignition Panel 2070120 | Woodgrain EX320 8 x 3 3/4 Inch Clearance

Boat part number 1109946 is a new ignition panel for Rinker EX320 Boats, part number 2070120 , but may be used on other boats.

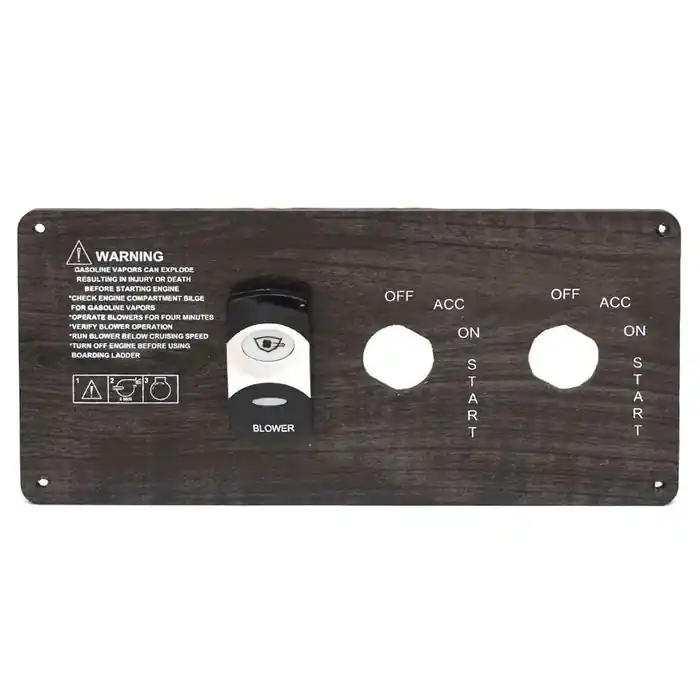

This panel is constructed out of matte woodgrain plastic and measures approximately 8″ L x 3 3/4″ H overall. Mounts using (4) 1/8″ Dia. mounting holes set apart 7 1/2″ L x 3 1/4″ H. Features (1) On/Off rocker switch for the blower motor and (2) 3/4″ W x 7/8″ H cutouts for ignition switches. Connects using (1) 12 pin male connector, (1) 9 pin male connector, and (1) 2 pin male connector. Switch is rated for 20 amps and 12 volts.

Tag Reads: PANEL, IGN, EX320, CHAR CHER, DTS/AXIUS

Specifications:

• Boat Manufacturer: Rinker Boats
• Model: EX320
• Part Number: 2070120
• Material: Plastic
• Color: Woodgrain
• Finish: Matte
• Electrical: 12V 20A
• Overall Dimensions: 8″ L x 3 3/4″ H
• Mounts: (4) 1/8″ Dia. Holes Set Apart 7 1/2″ L x 3 1/4″
• Connections: (1) 12 Pin Male / (1) 9 Pin Male / (1) 2 Pin Male
