Seasonal Sale Four Winns Boat Head Switch Panel 025-3039 | 378 Vista White

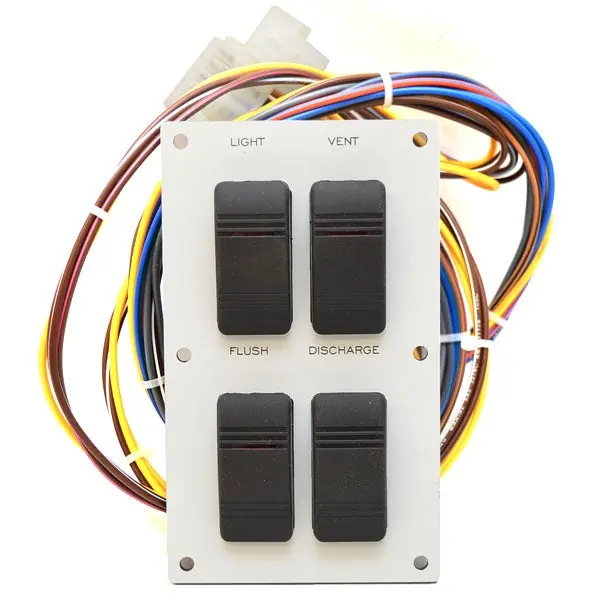

Boat part number 8202523 is a new head switch panel for a 378 Vista model Boat from Four Winns, part number 025-3039 .

This head switch panel is constructed of marine grade plastic, white in color with a matte finish. Measures approximately 5 7/8″ W x 3 1/2″ H overall, has (6) mounting holes around perimeter that measure approximately 1/8″ Dia. Each mounting hole is spaced 3″ apart center on center.

Connection:

• (1) 3 Pin Female
• (1) 4 Pin Female
• (1) 12 Pin Male

This panel host the following pre-marked switches:

• On/Off Light (Illuminated)
• On/Off Vent (Illuminated)
• On/Off Flush (Illiminated)
• Momentary On/Off Discharge

Specifications:

• Boat Manufacturer: Four Winns
• Model: 378 Vista
• Part Number: 025-3039
• Material: Marine Grade Plastic
• Color: White
• Finish: Matte
• Overall Dimensions: 5 7/8″ W x 3 1/2″ H
• Mounts: (6) 1/8″ Dia. Holes
