Ski Centurion Marine Boat Breaker Switch Panel Clearance

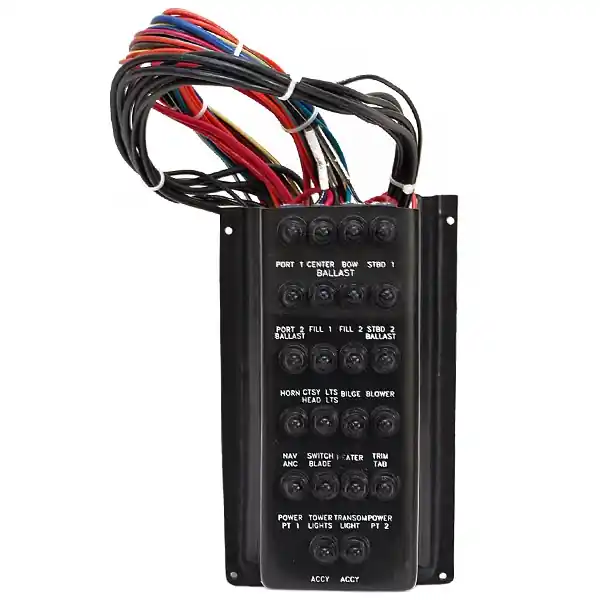

GLS stock number 1047357 is a new, out of the box, boat breaker switch panel from Ski Centurion, part number unavailable. Constructed of black plastic, this panel measures approximately 5 1/4″ W x 9″ H x 3 1/2″ D (not including switches) overall and has (1) 14-pin male, (1) 12-pin male, and (1) 2-pin female connections.

Features the following black booted push-to-reset breaker buttons: (1) Port 1, (1) Center Ballast, (1) Bow Ballast, (1) STBD 1, (1) Port 2 Ballast, (1) Fill 1, (1) Fill 2, (1) STBD 2 Ballast, (1) Horn, (1) CTSY LTS Head Lts, (1) Bilge, (1) Blower, (1) Nav Anc, (1) Switch Blade, (1) Heater, (1) Trim Tab, (1) Power PT 1, (1) Tower Lights, (1) Transon Light, (1) Power PT 2, (2) ACCY.

Specifications:

• Manufacturer: Ski Centurion
• Material: Black Plastic
• Overall Dimensions: 5 1/4″ W x 9″ H x 3 1/2″ D (not including switches)
• Mounts: (4) 3/16″ dia. holes with 4 3/4″ x 8″ apart center on center

Black Booted Push-to-Reset Breaker buttons:

• 5 amp: Port 1, Center Ballast, Bow Ballast, STBD 1, Port 2 Ballast, STBD 2 Ballast, Bilge, Blower, Nav Anc
• 10 amp: Horn, Heater, Power PT 1, Power PT 2, (2) ACC
• 15 amp: CTSY LTS Head Lts
• 20 amp: Fill 1, Fill 2, Trim Tab
• Unknown amp: Tower Light, Transom Light, Switch Blade

May show slight scuffs / scratches from storage and handling.
